Case sharing: Introduction to Junkai Coal Power 10X3MW Gas Power Generation Project

Project Overview

Construction scale: 20X3MW internal combustion power generation

1. Phase 1: 10 × 3MW internal combustion power generation with supporting construction of 50000m ³/ H Gas purification system, distribution equipment, and integration of power generation into the municipal power grid

2. Gas source: The tail gas produced by Junkai's new environmentally friendly Lancan furnace produces 600000 tons of Lancan annually (4 × 150000 tons), with an annual surplus of about 40 million meters of blue carbon exhaust gas ³

Power generation equipment: China's first blue charcoal gas power generation unit

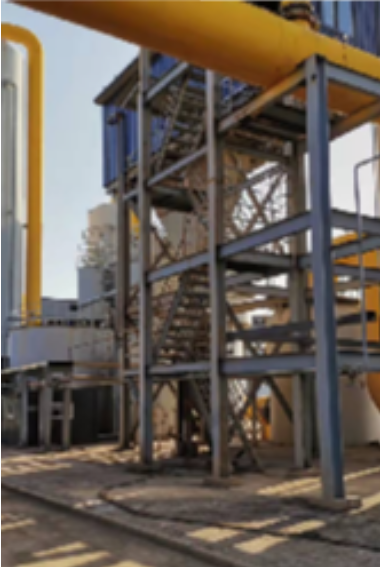

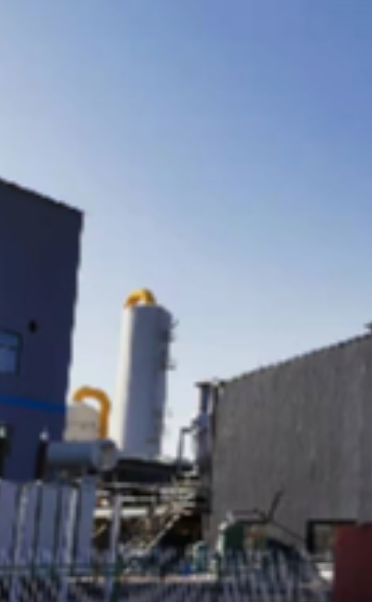

Gas purification: meeting the gas quality requirements of internal combustion engines

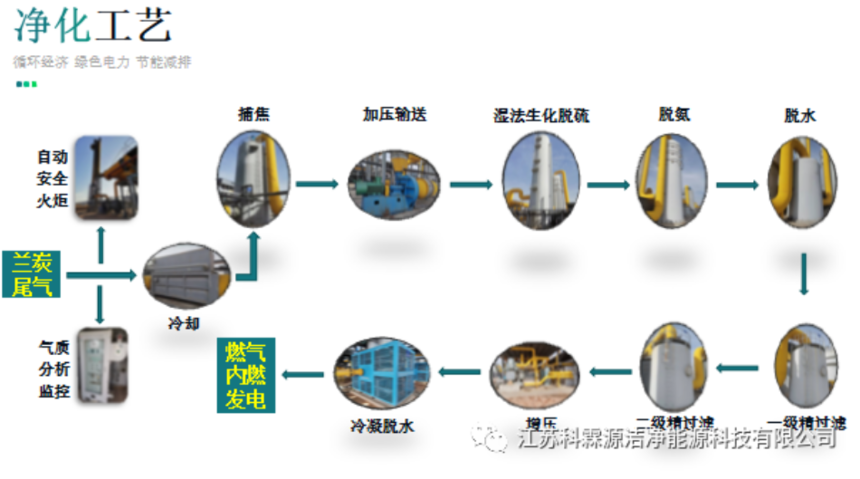

1. Purification process: cooling, coke capture, desulfurization, deamination, filtration, pressurization, dehydration, etc.

2. New processes and technologies: heat pipe cooling, wet biochemical desulfurization, elemental sulfur recovery, and freezing dehydration.

3. System features: clean, energy-saving, water-saving, environmentally friendly, economical, reliable, and advanced.

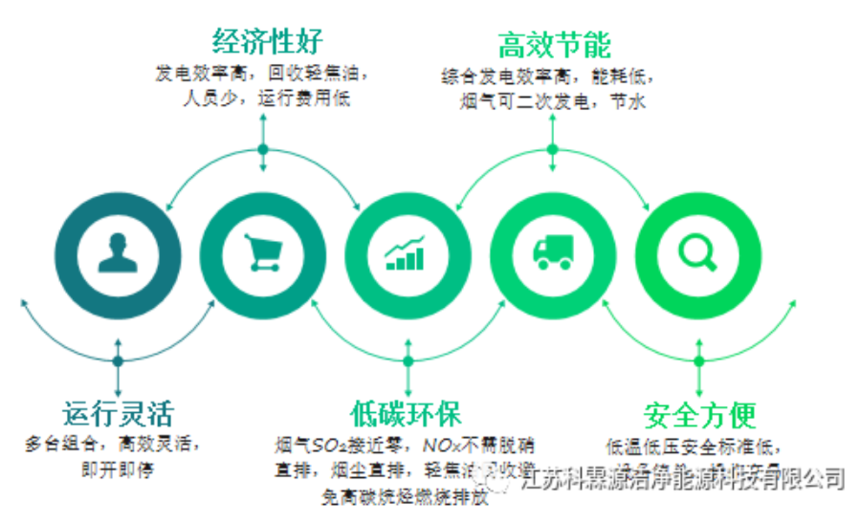

Advantages of internal combustion gas power generation

Project highlights

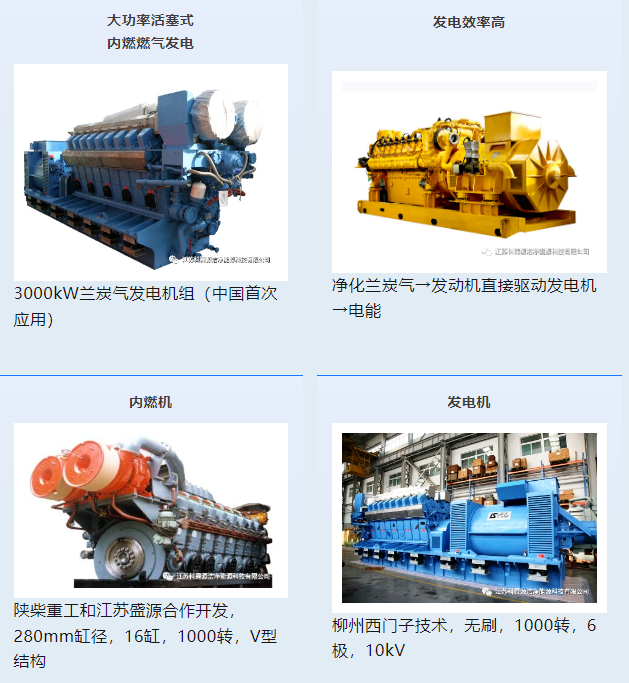

Relying on Jiangsu Shengyuan's first major technical equipment in the national energy field in 2021: NPG4000 gas internal combustion engine (4000kW), it has demonstrated high-power internal combustion gas power generation in the Chinese charcoal industry.

The highest single unit power gas internal combustion power generation equipment currently being demonstrated and applied in China is the 3000kW blue carbon gas power generation unit.

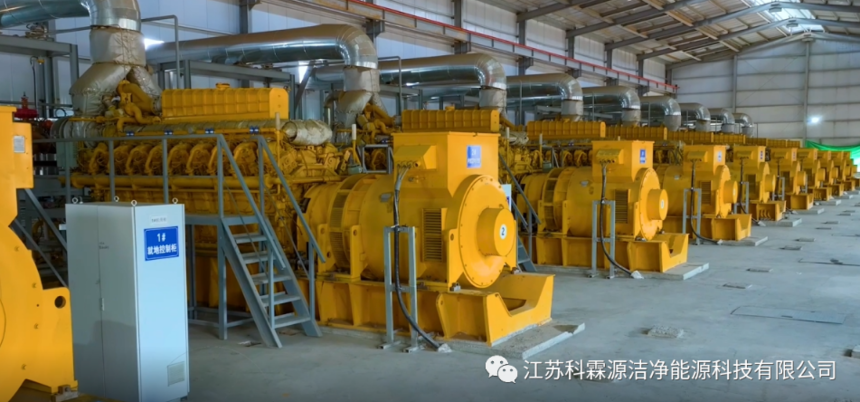

Junkai Phase I 10 × The 3MW power generation project is currently the world's largest gas internal combustion power plant with installed capacity.

To achieve low-carbon, efficient, and clean power generation of blue carbon tail gas, purify the tail gas to meet the most advanced international emission indicators, and contribute to China's carbon peak and carbon neutrality goals.

Demonstration significance

Realize the integration of coal, coke, and electricity, and adopt a multi-production circular economy model

Assist in the Blue Sky Defense Campaign and Energy Conservation and Emission Reduction Action Plan in Yulin City.

Promote the upgrading of Yulin's orchid charcoal industry, transform green, safe, and high-quality development, and make contributions to China's energy dual control and dual carbon goals.

Low carbon, efficient, and clean blue carbon gas internal combustion power generation will replace small thermal power plants with low efficiency, high consumption, and high emissions, which will become an inevitable trend

Manufacturer introduction: Shaanxi Chai Heavy Industry&Jiangsu Shengyuan

Subsidiary of China Shipbuilding Corporation

National "First Five Year Plan" Key Construction Enterprises

China's largest engine production base with the widest power distribution and the longest production history;

The main manufacturing base for surface ship power and nuclear emergency generator sets of the Chinese Navy;

Introducing French engine technology,

Produced according to military standards for over 40 years.

High tech enterprises in Jiangsu Province

China's Gas Power Generation Countries

Standard drafting and formulation unit

A high-tech enterprise specializing in the development and production of gas power generation and gas purification equipment for over 30 years;

Possess more than ten invention patents for gas power generation, including in cylinder mixed direct injection/lean combustion;

Developed multiple internal combustion gas power generation products for the first time in China and internationally.

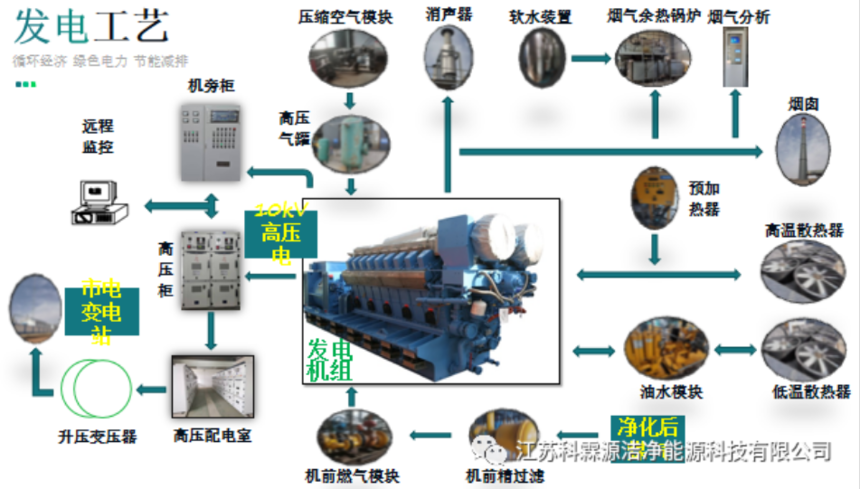

technological process

Coexistence of environmental protection and economic benefits

On May 7, 2020, in order to accelerate the upgrading and transformation of the orchid charcoal industry and promote green, safe, and high-quality development, the Yulin Municipal People's Government issued the "Yulin City Implementation Plan for Promoting the High Quality Development of the orchid charcoal Industry Upgrading and Transformation", which aims to develop energy-saving new technology application projects in the Shenmu orchid charcoal industry characteristic park.

Junkai Coal Power Co., Ltd. chose Shengyuan and adopted new processes, technologies, and equipment upgrades and renovations.

For the first time in China, the application of blue carbon gas power generation units has a short construction cycle, flexible combination, and high thermal efficiency.

The equipment purifies exhaust gas to meet international advanced standards, and utilizes exhaust gas to generate electricity directly for production, office, and daily use in the factory area; More surplus electricity is connected to the national grid, and the economic benefits of power generation continue to circulate in a virtuous cycle, freeing up environmental capacity and production factors for high-quality production capacity.

Operational Vision

Make due contributions to Yulin and even China's energy dual control, energy conservation and emission reduction, and dual carbon goals!
